    HOME > 플랜지 > ANSI CLASS 400-600 FLANGE
  ANSI B16.5 400LBS, 600LBS FLANGE
stampa

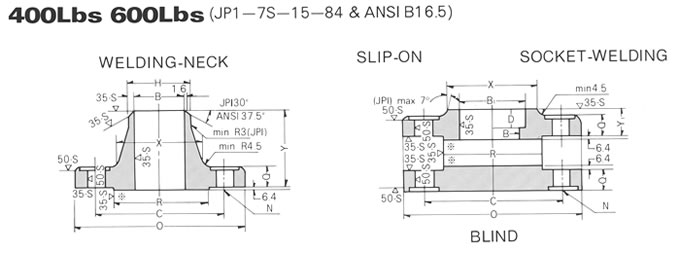

ANSI B16.5 CL400-600 FLANGE DRAWING, SHANDONG HYUPSHIN FLANGES CO., LTD

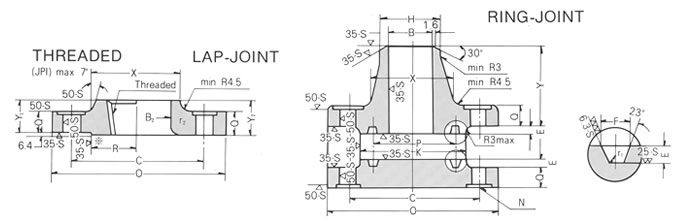

ANSI B16.5 CL400-600 FLANGE DRAWING, SHANDONG HYUPSHIN FLANGES CO., LTD
HYUPSHIN FLANGES
1. 기준: ANSI B16.5
2. 종류: PLRF, SORF, WNRF, BLIND
3. 압력등급: 400LBS-600LBS
4. 사이즈: 15A - 2000A
5. 강철: SS400, SF440A, SF390A
6. 생산공예: Forged

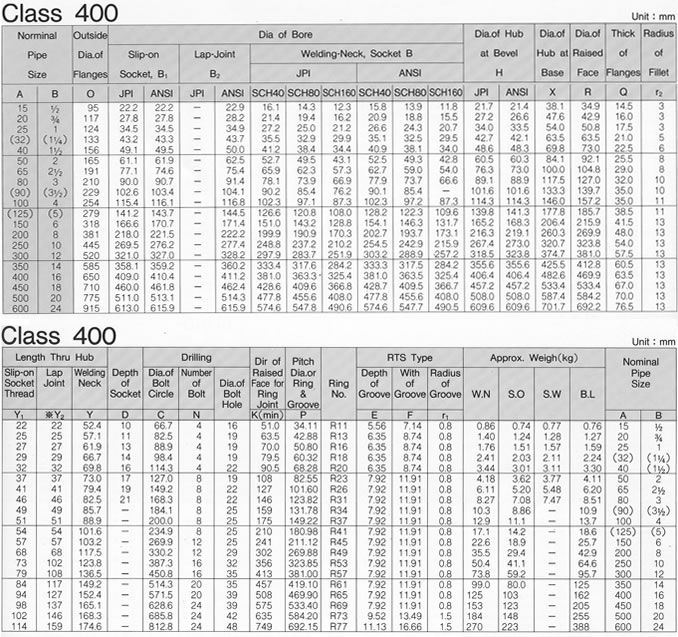

ANSI B16.5 CLASS 400 FLANGE SPECIFICATIONS, SHANDONG HYUPSHIN FLANGES CO., LTD

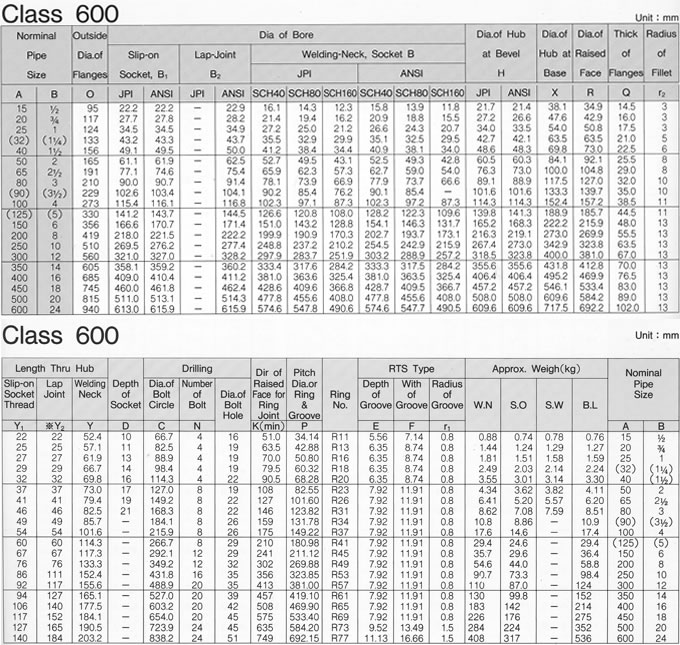

ANSI B16.5 CLASS 600 FLANGE SPECIFICATIONS, SHANDONG HYUPSHIN FLANGES CO., LTD

Request a quote
