jinan hyupshin flanges co., ltd produce forged flanges, carbon steel flanges, standards include ANSI, ASME, DIN, UNI, EN1092-1, JIS, BS, SABS, GOST, NS, AS, types include SO, WN, BLIND, THREADED, PLATE, LOOSE

    HOME > 플랜지 > ANSI CLASS 900 FLANGE
  ANSI B16.5 900LBS FLANGE
stampa

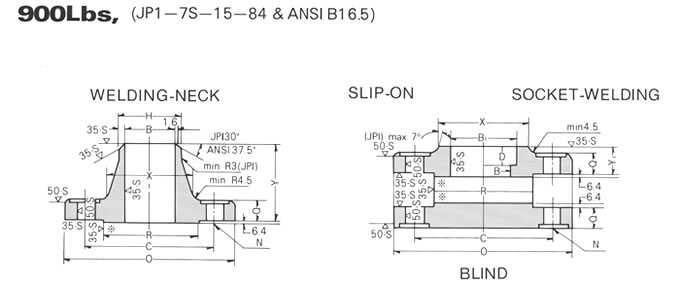

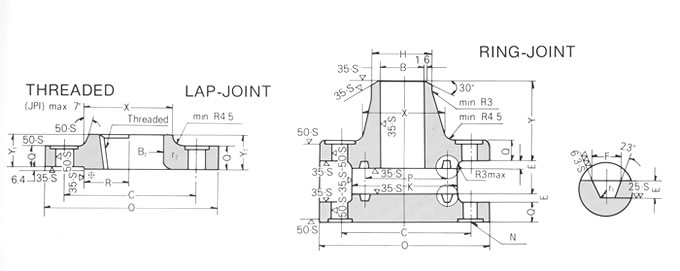

ANSI B16.5 CL900 FLANGE DRAWING, SHANDONG HYUPSHIN FLANGES CO., LTD
ANSI B16.5 CL900 FLANGE DRAWING, SHANDONG HYUPSHIN FLANGES CO., LTD
HYUPSHIN FLANGES
1. 기준: ANSI B16.5
2. 종류: PLRF, SORF, WNRF, BLIND
3. 압력등급: 900LBS
4. 사이즈: 15A - 2000A
5. 강철: SS400, SF440A, SF390A
6. 생산공예: Forged

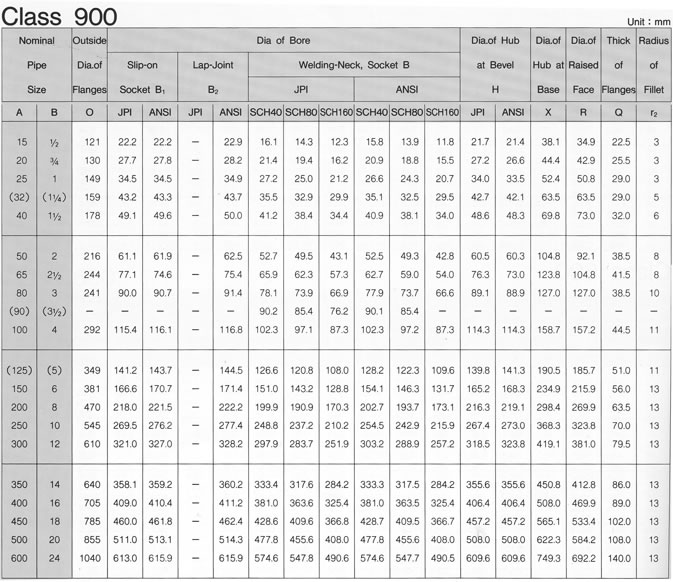

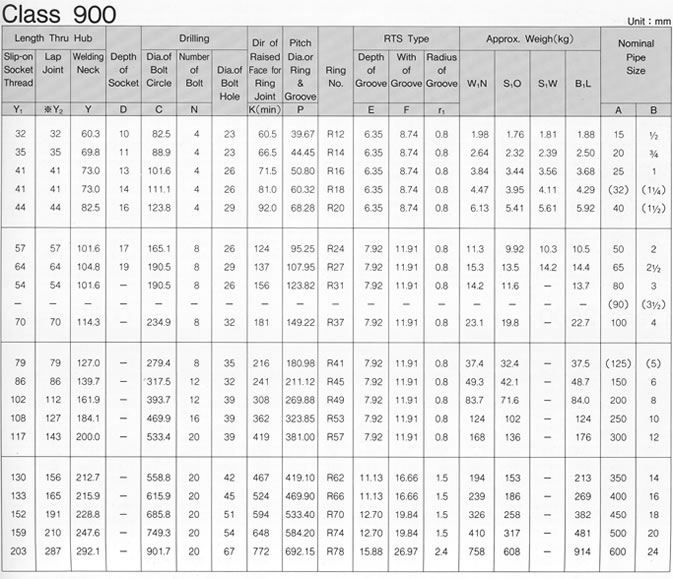

ANSI B16.5 CLASS 900 FLANGE SPECIFICATIONS, SHANDONG HYUPSHIN FLANGES CO., LTD
ANSI B16.5 CLASS 900 FLANGE SPECIFICATIONS, SHANDONG HYUPSHIN FLANGES CO., LTD

Request a quote
