  KS B1503 20K FLANGE
stampa

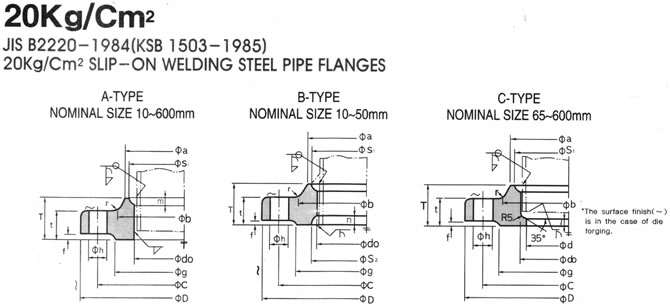

KS B 1503 20K FLANGE DRAWING, SHANDONG HYUPSHIN FLANGES CO., LTD
HYUPSHIN FLANGES
1. 기준: KS B 1503 / JIS B 2220
2. 종류: SO PLATE, SO HUB, BLIND
3. 압력등급:
20KG
4. 사이즈:
15A-2000A
5. 강철:
SS400, SF440A, SF390A
6. 생산공예:
Forged

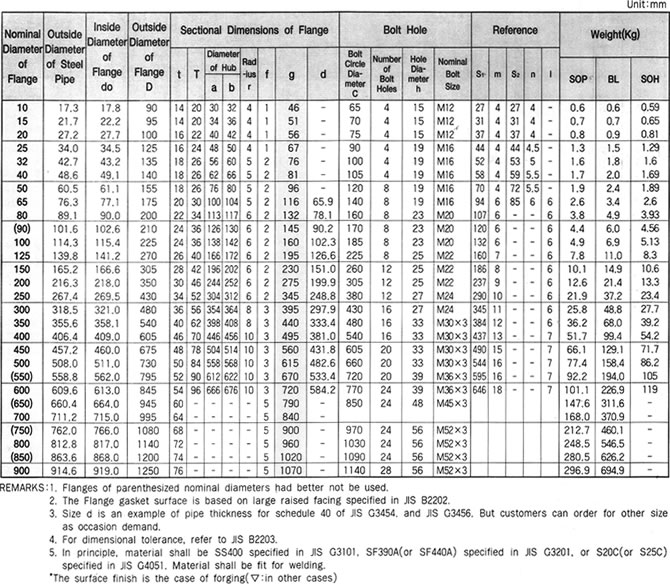

KS 20K FLANGE SPECIFICATION, SHANDONG HYUPSHIN FLANGES CO., LTD

Request a quote
