	WELD NECK FLANGE DIN 2634 PN25

din weld neck flange, din2631, din2632, din2633, din2634, din2635, flange

HYUPSHIN FLANGES

1. Standard: DIN 2634, Vorschweißflansche
2. Type: Welding Neck Flange, WN Flange (Raised Face)
3. Pressure: PN25
4. Size: DN15 - DN1000, larger Sizes available on request
5. Raw Material: C22.8, RSt37.2, S235JRG2, C21, A105
6. Process: Forged
7. Basic requirements for Material and Flange

Germany standard flange DIN 2634 welding neck flanges; nominal pressure 25
Vorschweißflansche DIN 2634 Nenndruck 25
Brides à souder à collerette DIN 2634: pression nominale 25

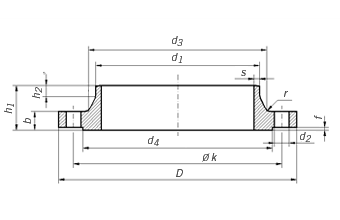

Pipe			Flange				Neck				Raised face		Screws			Weight
																(7,85 Kg/dm3)
Rated	d1		D	b	k	h1	d3	s	r	h2	d4	f	Holes	Thread	d2	Kg
Diameter	ISO Series	DIN Series
15	-	20	95	16	65	38	30	2	4	6	45	2	4	M 12	14	0,746
	21,3	-					32
20	-	25	105	18	75	40	38	2,3	4	6	58	2	4	M 12	14	1,06
	26,9	-					40
25	-	30	115	18	85	40	42	2,6	4	6	68	2	4	M 12	14	1,29
	33,7	-					45
32	-	38	140	18	100	42	52	2,6	6	6	78	2	4	M 16	18	1,88
	42,4	-					56
40	-	44,5	150	18	110	45	60	2,6	6	7	88	3	4	M 16	18	2,33
	48,3	-					64
50	-	57	165	20	125	48	72	2,9	6	8	102	3	4	M 16	18	2,82
	60,3	-					75
65	76,1	-	185	22	145	52	90	2,9	6	10	122	3	8	M 16	18	3,74
80	88,9	-	200	24	160	58	105	3,2	8	12	138	3	8	M 16	18	4,75
100	-	108	235	24	190	65	128	3,6	8	12	162	3	8	M 20	22	6,52
	114,3	-					134
125	-	133	270	26	220	68	155	4	8	12	188	3	8	M 24	26	9,07
	139,7	-					162
150	-	159	300	28	250	75	182	4,5	10	12	218	3	8	M 24	26	11,8
	168,3	-					192
(175)	193,7	-	350	28	280	75	218	5,6	10	15	248	3	12	M 24	26	13,4
200	219,1	-	360	30	310	80	244	6,3	10	16	278	3	12	M 24	26	17
250	-	267	425	32	370	88	292	7,1	12	18	335	3	12	M 27	30	24,4
	273	-					298
300	323,9	-	485	34	430	92	352	8	12	18	395	4	16	M 27	30	31,2
350	355,6	-	555	38	490	100	398	8	12	20	450	4	16	M 30	33	47,2
	-	368														44,2
400	406,4	-	620	40	550	110	452	8,8	12	20	505	4	16	M 33	36	61,7
	-	419														57,9
(450)	457	-	670	42	600	110	500	8,8	12	20	550	4	20	M 33	36	71,9
500	508	-	730	44	660	125	558	10	12	20	615	4	20	M 33	36	89,6
600	610	-	845	46	770	125	660	11	12	20	720	5	20	M 36	39	104
700	711	-	960	46	875	125	760	13	20	24	820	5	24	M 39	42	136
800	813	-	1085	50	990	135	865	14	22	24	930	5	24	M 45	48	186
900	914	-	1185	54	1090	145	968	16	24	28	1030	5	28	M 45	48	236
1000	1016	-	1320	58	1210	155	1070	18	24	28	1140	5	28	M 52	56	307

NOTE:
1. Facing according to DIN 2526
Flat face:
Form A, Face without any requirements
Form B, Face Rz=160, machined (not smoother than 40µm)
Raised Face:
Form C, Face Rz=160, machined (not smoother than 40µm)
Form D, Face Rz=40, machined
Form E, Face Rz=16, machined
2. Tongue and groove according to DIN 2512
Form F, Tongue
Form N, Groove
3. Male and Female according to DIN 2513, DIN 2514
Form V13, V14, Male
Form R13, R16, Female
4. Chemfering for diaphragm-weld packings, PN64-PN400, according to DIN 2695
5. Facing for lens-shaped joints, PN64-PN400, according to DIN 2696

	DIN 2631
	DIN 2632
	DIN 2633
	DIN 2634
	DIN 2635
