HYUPSHIN FLANGES |
1. 기준: ANSI B16.5, ASME B16.5
2. 종류:
Plate Flange, SOP Flange (Raised Face)
3. 압력등급: Class 300
4. 사이즈: 1/2" - 24", larger Sizes available on request
5.
강철: Carbon Steel: ASTM A105, A350
6. 생산공예: Forged or Stamped
7. ASTM raw material specification |
|
|

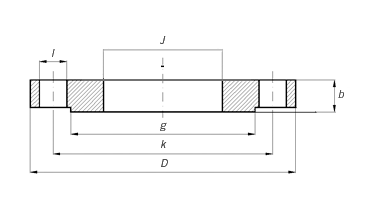

ANSI/ASME/ASA B16.5 300lb/sq.in. Flange Plate RF |
ø |
D |
b |
g |
m |
J |
k |
Holes |
l |
Kg. |
1/2" |
95,6 |
14,3 |
34,9 |
38,1 |
22,3 |
66,7 |
4 |
15,9 |
0,700 |
3/4" |
117,5 |
15,9 |
42,9 |
47,6 |
27,7 |
82,5 |
4 |
19,0 |
1,100 |
1" |
123,8 |
17,5 |
50,8 |
54,0 |
34,5 |
88,9 |
4 |
19,0 |
1,400 |
1 1/4" |
133,3 |
19,0 |
63,5 |
63,5 |
43,2 |
98,4 |
4 |
19,0 |
1,800 |
1 1/2" |
155,6 |
20,6 |
73,0 |
69,8 |
49,5 |
114,3 |
4 |
22,2 |
2,600 |
2" |
165,1 |
22,2 |
92,1 |
84,1 |
62,0 |
127,0 |
8 |
19,0 |
3,400 |
2 1/2" |
190,5 |
25,4 |
104,8 |
100,0 |
74,7 |
149,2 |
8 |
22,2 |
4,400 |
3" |
209,5 |
28,6 |
127,0 |
117,5 |
90,7 |
168,3 |
8 |
22,2 |
6,100 |
3 1/2" |
228,6 |
30,2 |
139,7 |
133,3 |
103,4 |
184,1 |
8 |
22,2 |
7,500 |
4" |
254,0 |
31,7 |
157,2 |
146,0 |
116,1 |
200,0 |
8 |
22,2 |
10,100 |
5" |
279,4 |
34,9 |
185,7 |
177,8 |
143,8 |
234,9 |
8 |
22,2 |
12,500 |
6" |
317,5 |
36,5 |
215,9 |
206,4 |
170,7 |
269,9 |
12 |
22,2 |
14,100 |
8" |
381,0 |
41,3 |
269,9 |
260,3 |
221,5 |
330,2 |
12 |
25,4 |
24,800 |
10" |
444,5 |
47,6 |
323,8 |
320,7 |
276,3 |
387,3 |
16 |
28,6 |
37,100 |
12" |
520,7 |
50,8 |
381,0 |
374,6 |
327,1 |
450,8 |
16 |
31,7 |
50,000 |
14" |
584,2 |
54,0 |
412,7 |
425,4 |
359,1 |
514,3 |
20 |
31,7 |
70,000 |
16" |
647,7 |
57,1 |
469,9 |
482,6 |
410,5 |
571,5 |
20 |
34,9 |
90,000 |
18" |
711,2 |
60,3 |
533,4 |
533,4 |
461,8 |
628,6 |
24 |
34,9 |
112,000 |
20" |
774,7 |
63,5 |
584,2 |
584,2 |
513,1 |
685,8 |
24 |
34,9 |
133,000 |
22" |
838,2 |
66,7 |
641,2 |
641,2 |
564,4 |
742,9 |
24 |
41,3 |
197,000 |
24" |
914,4 |
69,8 |
692,1 |
701,7 |
615,9 |
812,8 |
24 |
41,3 |
208,000 |
|
NOTE:
1. Class 300 flanges except Lap Joint will be furnished with 0.06 (1.6mm) raised face, which is included in ‘Thickness’ (C) and ‘Length through Hub’ (Y1), (Y3).
2. For Slip-on, Threaded, Socket Welding and Lap Joint Flanges, the hubs can be shaped either vertical from base to top or tapered within the limits of 7 degrees.
3. Blind Flanges may be made with the same hub as that used for Slip-on Flanges or without hub.
4. The gasket surface and backside (bearing surface for bolting) are made parallel within 1 degree. To accomplish parallelism, spot facing is carried out according to MSS SP-9, without reducing thickness (C).
5. Depth of Socket (D) is covered by ANSI B 16.5 only in sizes through 3 inch, over 3 inch is at the manufacturer’s option. |
|
| |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
